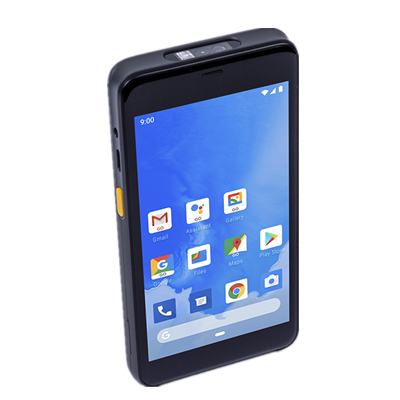

BP-5500

BP-5500 Plus sports a 5” Touch display, Zebra SE4710 barcode scan engine, 1/8GB or 2/16GB memory, Android 10 and a powerful battery pack. The terminal is the only one in this class on which the NFC reader is located on the front display allowing very good customer experience when paying with NFC credit cards.

Processor

4x ARM Cortex-A53 MPcore - 1.8 GHz

Memory

1 GB RAM, 8 GB ROM, 32 GB Micro SD max extended storage

Microcontroller

MediaTek

Operating System

Android 10 (Go edition)

Display

5-inch mutual capacitance touch 720 x 1280 px

Primary Camera

5 megapixels, fixed focus with 70 lm flash light

Buttons

On/Off button, 2 function buttons

Smart Card Reader

Friction type

Contactless Reader

ST25R3917

Contactless Payments

VISA payWave

MasterCard Contactless

American Express ExpressPay

Discover D-Pas

Abecs

RuPay

MIR

UnionPay QuickPass

JCB J/Speedy

2D Barcode Reader

Zebra SE4710 - 1280 x 800 CMOS (optional)

Connectors

2 x nano SIM card slots

SAM card slot

Micro SD card slot (max 32 GB)

RS-232 contact pins

USB Type-C port

3.5 mm TRRS port

Wired Communication

USB OTG

Bluetooth

BT version 5.0 Low Energy

Wireless

IEEE 802.11 a/b/g/n/ac, 2.4G & 5G

Modem

4G LTE B1, B3, B5, B7, B8, B19, B20, B26, B38, B40, B41 3G WCDMA B1, B5, B8 2G B2, B3, B5, B8 DL/UL

Audio Features

90 dB speaker

Power Supply

DC through USB, DC through contact pins

Battery

Rechargeable Battery 4.35 V, 2500 mAh

Reliability

500,000 chip card cycles

Dimension

W x D x H 144 x 77 x 16 mm
