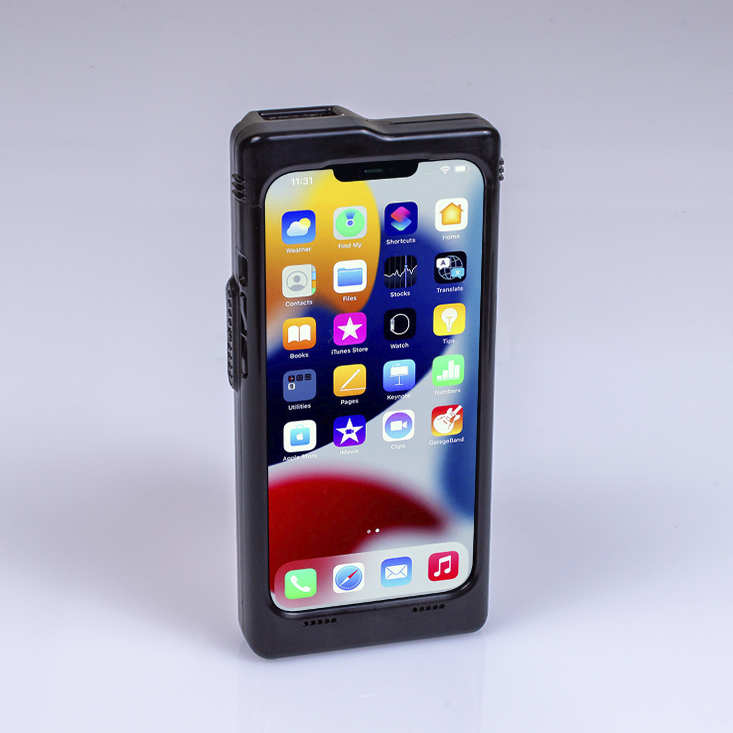

LineaPro 13

CPU

ARM Cortex M4

Buttons

2 scan buttons

Contactless Reader (optional)

NFC-A, ISO 14443 Type A

NFC-B, ISO 14443 Type B

NFC-F, Felica

NFC-V, ISO 15693

Barcode Reader

2D Opticon MDI-4000 640 x 480 CMOS (optional)

2D Zebra SE4750 SR/MR-PL3307 1280 x 960 CMOS (optional)

2D Zebra SE4770 1280 x 960 CMOS (optional)

Symbologies (2D Opticon MDI-4000)

MDI-4000: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey, POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET, Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Connectors

USB Type-C port
Lightning connector (cradle)

SAM holder

Docking connector

Wired Communication

Serial communication (USB Type-C port)
Serial communication (Docking connector)

Device Compatibility

iPhone 13 Pro

Audio Features

Electromagnetic buzzer

Power Supply

DC 5 V through USB

DC 5 V through docking connector

Battery

Rechargeable Li-Ion Battery 3.6 V, 2330 mAh Fuel Gauge

Dimension W x D x H

80 x 171 x 28 mm

Weight

164 g

Operational Temperature

-10 °C to 40 °C / 5 to 90% RH

Storage Temperature

-20 °C to 50 °C / 5 to 90% RH

Drop Tested

1.2 m faces and edges

Other Box Contents

LineaPro 13 Industrial device USB Type-A to USB Type-C cable
