BC-50

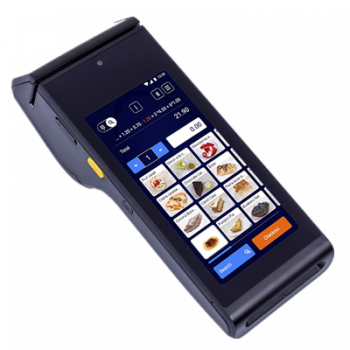

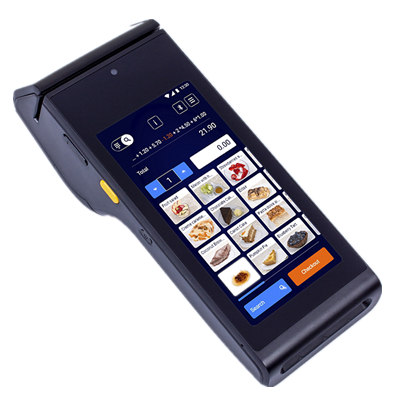

BC-50 is an Android operated magnetic
stripe, smart card and contactless payment
terminal with fiscal ECR capabilities. It includes
a fast thermal printer, a 2D barcode scanner and
a 5.4 inch multi-touch display for navigating a
catalogue or simply entering an amount.

Processor

Quad Core ARM Cortex-A53 - 2.0 GHz

CPU Memory

8 GB Flash, 1 GB RAM LPDDR3, 32 GB Micro SD max extended storage

Operating System

Android 10

Main Camera 5 Megapixel camera Front Camera

0.3 Megapixel camera

Printing Speed

12 lines per second

Max Roll Diameter

40 mm

Display

5.4-inch multi-touch capacitive 720 x 1440 px

Customer Display

128 x 32 px OLED

Buttons

On/Off button, 2 volume buttons, 2 scan buttons

Card Readers

Magnetic Card Reader, Smart Card Reader, Contactless Reader

Contactless Payments

VISA payWave, MasterCard PayPass, American Express, DPAS (Discover), J/Speedy (JCB)

2D Barcode Reader

Zebra SE4710 - 1280 x 800 CMOS

Symbologies

UPC/EAN, UPC/EAN with supplementals, Code 128, GS1-128, Code 39, Trioptic, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial 2 of 5, Codabar, Codablock F, MSI, Telepen, GS1 DataBar variants PDF417, MicroPDF417, Composite Code, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, GS1 QR, Han Xin, Japan Postal, Australian Post, Data Matrix, US postnet, UK postal, MicroPDF417, Simple Datamatrix, Inverted Datamatrix, DOT code

Connectors

SIM card slot, SAM card slot, Contact pins, USB Type-C port, 3.5 mm port, Micro SD card slot (max 32 GB)

Wired Communication

USB

Wireless

IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz

Modem

4G LTE B1, B3, B5, B7, B8, B19, B20, B26, B38, B40, B41

GNSS

GPS

Audio Features

Speaker, Electromagnetic buzzer, Microphone

Power Supply

AC 100 to 240 V, 50 to 60 Hz, DC 9 V, 2 A

Battery

Rechargeable Li-Ion Battery, 7.4 V, 2600 mAh

Certificates

CE, RoHS, MasterCard TQM PCI PTS 5.x SRED, EMV Level 1, EMV Level 2, EMV Level 1 Contactless

Operational Temperature

-10 °C to 50 °C

Storage Temperature

-20 °C to 70 °C

Dimension

W x D x H 82 x 206 x 61 mm

Weight

506 g
