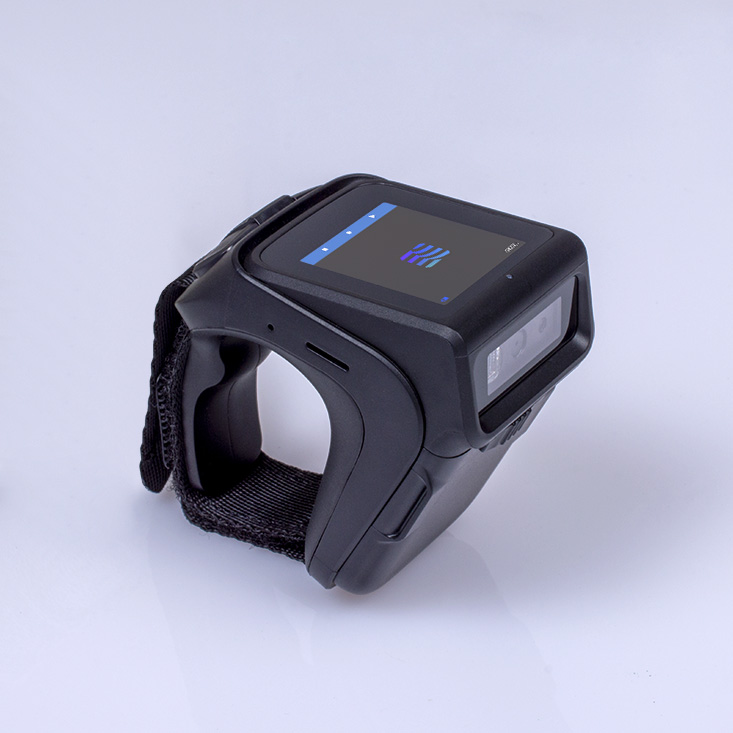

DRS-50 Industry first Android 11 based ring scanner. Rugged, robust and at the same time tender, light and easy to use. DRS-50 is a masterpiece of Datecs abilities to develop perfect products.

CPU

MT8766

Memory

1 GB RAM

8 GB Flash

Operating System

Android 11

Buttons

On/Off button

1 scan button

2 function buttons

Display

1.41-inch MOLED 320 x 360 px

Sensors

Light sensor Accelerometer

Barcode Reader

2D Zebra SE4770 - 1280 x 800 CMOS

Connectors Magnet

connect contact pads

Wired Communication

USB

Bluetooth

BT version 5.0

Wireless

IEEE 802.11 a/b/g/n/ac, 2.4G / 5G

GNSS

GPS

LED Indication

Scanning

Audio Features

90 dB speaker

Vibration Capabilities

14,000 rpm

Power Supply

DC 5 V through contact pads

Battery

Rechargeable Li-Ion Battery 3.8 V, 900 mAh

Certificates

IP65

CE

FCC

Dimension W x D x H

41 x 64 x 80 mm

Weight

140 g

Operational Temperature

-10 °C to 45 °C / 10 to 90% RH

Storage temperature

-30 °C to 70 °C / 10 to 90% RH

Drop Tested

1.2 m, faces and edges
